Hit and Miss
Hit and Miss Antique Stationary Gasoline Engines
"Chuggers"

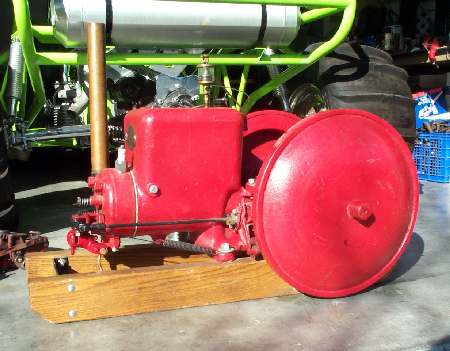

Fairbanks Morse Z
(aka "Dish Pan")
1 1/2 hp at 500 RPM
ser#505985
Manufactured  in 1922

My first hit and miss engine restoration.


Click Here to see break down of the govenor.

Click Here to see closeups of the govenor setup unit on engine.

Click Here to see closeups of the Mixer (carb)

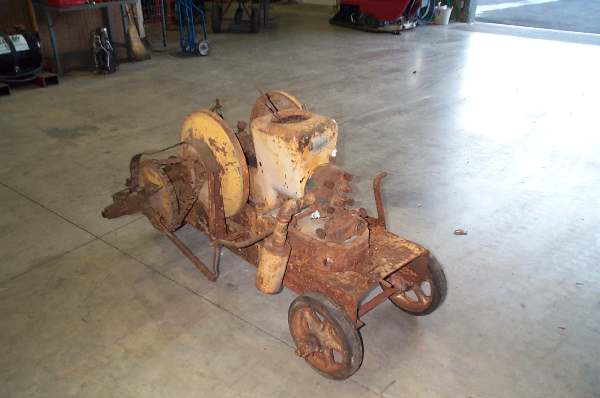

Here is my second engine. It was given to me by a friend. He didn't want it anymore!!

Fairbanks Morse Z
(aka "Dish Pan")
2 hp at 600 RPM
ser# 688392
Manufactured  in 1927

The entire hoist was manufactured by A. L. Young Machinery Company in San Francisco, California
It has a label on side of the main frame

This rig was used by J. T. Thorp & Sons Inc. ( http://www.jtthorpe.com/ ) untill it was retired (thrown out).

It is a throttled engine with a mag. It is missing the entire govenor bracket and all the parts and the type R mag.

Click Here to see more of the unrestored engine

Click Here to see the rebuild!

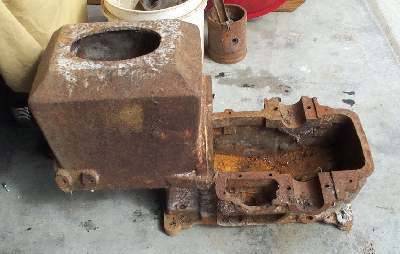

This is what is left of a another engine I also own.

Stover
1937
3 - 3 1/2 HP
575 RPMs
Type CT3
Serial Number TC250732

Click Here to see more photos of this engine.




Need A Battery For Your Engine, But Want It To Look Old?
Make A New Battery Look Old!
Click Here

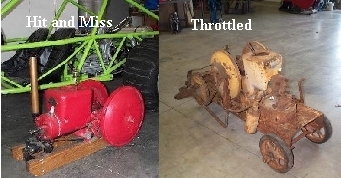

Want to know the difference between a "Hit and Miss" and a Throttled Engine?
Click Here
